CC Sequencer Generators

Overview

In Firmware v3.8, we added the CC Sequencer feature, which allows you to step through a specified list of values at a given interval.

Discussion thread on this feature here: https://forum.morningstar.io/t/beta-feature-cc-sequencer/654

Setting the list of values

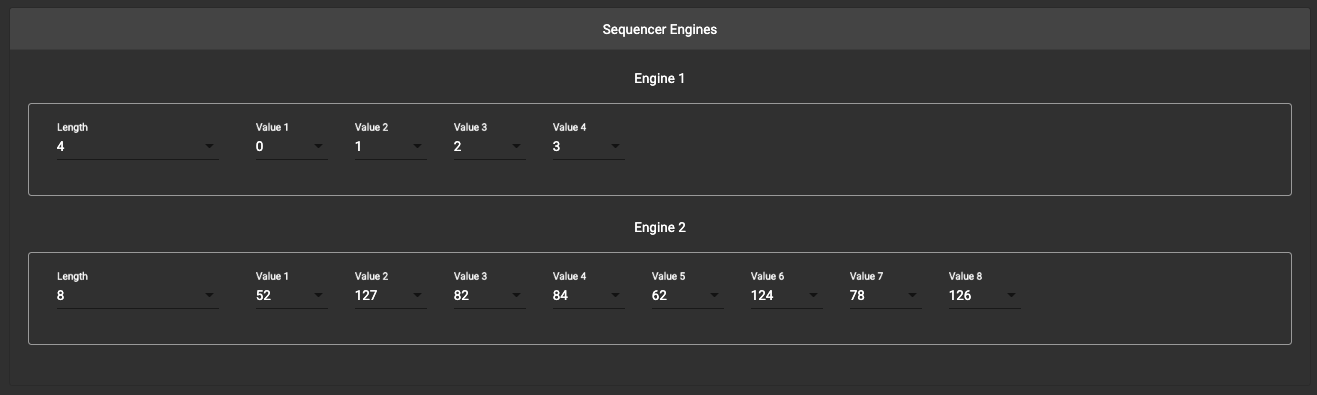

The list of values can be found in the Editor under the Controller Settings tab. There are 2 lists that you can edit. First, specify the length of your list (up to 16) and second, set the values for each element in the list. The sequencer will step through these values.

Starting the Sequencer

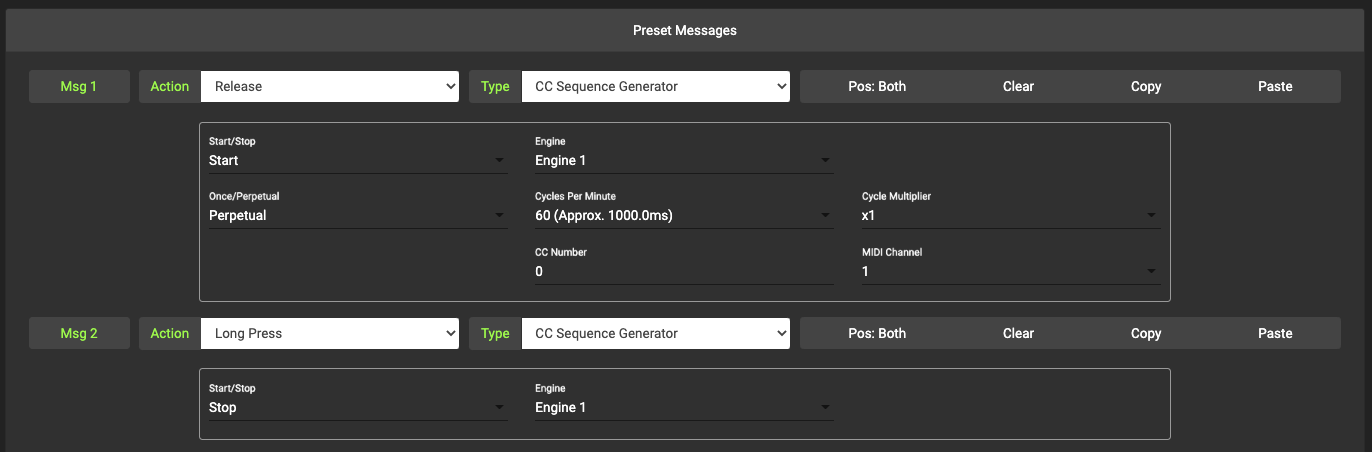

To start the CC Sequencer, you’ll need to program a CC Sequence Generator message in your preset. The available options are

  • Start/Stop: Whether to start or stop the selected sequencer

  • Engine: Select which engine to apply this setting to

  • Once/Perpetual: Whether to run the interval once, or perpetually

  • Cycles Per Minute: At what speed to run the Cycle intervals.

  • Cycle Multiplier: How many cycles to run in one interval

  • CC Number: Control Change Number

  • MIDI Channel: MIDI Channel

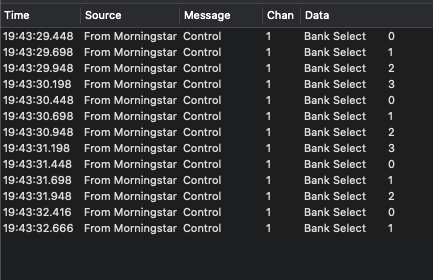

When the preset is engaged, the controller will start sending the CC messages with the specified values at the specified interval.
